Two new printers are now available and supported by both Novax 2020 and Novax LEDA
The Novax Leda has the ability to process and store payment card transactions in a similar manner to the Novax 2020 storing up to 120 records in its internal data log. As there is only one serial port on the LEDA, cables require swapping to transfer the data from the meter to the base. The Novax 2020, having two serial ports can drive either printer and utilise the swipe reader without compromising the communications on port 1. This allows connection to a wireless-network for transferring 'live' transactions and supporting dispatch terminal functionality. The printer/ swipe reader and GPS receiver operation is unaffected.
TP30 Thermal Printer
General features: u Size: 75 x 95 x 35mm u Weight: 169g. u Direct thermal printing. u High speed(50mm/sec) u High resolution(203dpi : 8dots/mm). u Easier paper loading by CLAMSHELL design. u Support text and graphic printing. u Serial(RS-232C) interface uDC 12V operation.

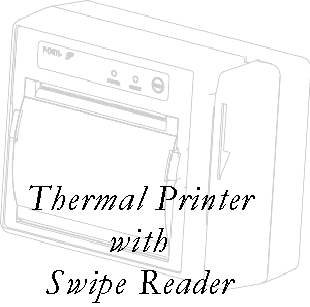

General features: u Size: 105 x 80.4 x 45.7mm u Weight: 239.5g. u Direct thermal printing. u High speed(50mm/sec) u High resolution(203dpi : 8dots/mm). u Magnetic Stripe Reader included. u Easier paper loading by CLAMSHELL design. u Support text and graphic printing. u Serial(RS-232C) interface uDC 12-24V Standby 60~30mA and Max 3.2~1.6A.
Introductory price:
TP-30 RRP $345+gst
TP-MSR40 RRP $395+gst
Production quantities available March 2004. Meter firmware upgrade $40+gst . (Connectors, data-log chip upgrade; quotes on request).
